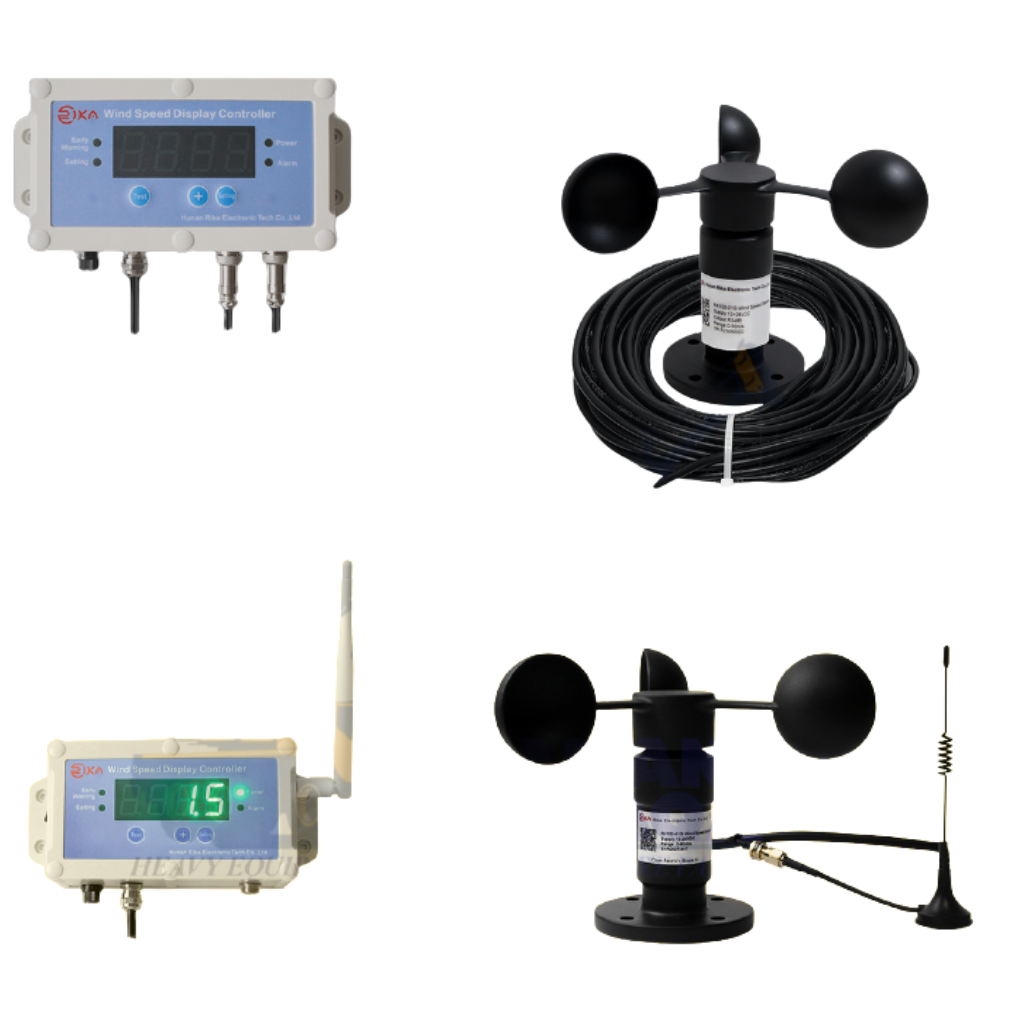

Wind Speed Sensor & Display Controller
(Wired type & Wireless type)
Features
Easy operation, clear visual display, real-time monitoring,
rapid response, low power consumption, self-checking
function, and dual relays for early warning and alarm.
Applications
Crane safety, high-altitude equipment monitoring, ports, solar & wind power plants, mobile weather vehicles, marine vessels, remote airports & helipads, and road & rail tunnels.
Technical Specifications
- Range: 0–60 m/s (0–216 km/h)
- Accuracy: ±(0.3 + 0.03V) m/s
- Resolution: 0.1 m/s
- Warning / Alarm: User-set thresholds with dual relays
- Response Time: < 100 ms
- Alarm Type: Audible & visual
- Relay Output: 10A @ 30VDC / 250VAC
- Communication: Wired (up to 200 m) / Wireless (up to 1 km LOS)
- Operating Temp.: -30°C to +70°C
- Power Supply: AC 100–240V or DC 12–24V
- Power Consumption: Wired < 3 W; Wireless: sensor 0.25 W, controller 2.5 W
- Protection: Controller IP54, Sensor IP65
- Weight: Controller 315 g, Sensor 240 g
- Material: ABS housing, aluminum sensor
- Storage: 10–50°C, 20–90% RH
